Point to point low-thrust

In this tutorial we show the use of the pykep.trajopt.direct_point2point to find a low-thrust trajectory connecting two fixed points in space. Since the points are considered fixed this effort has mainly an academic value, but it is infomrative in the study of the numerical properties of an optimization pipeline. The decision vector in this class compatible with pygmo [BI20] UDPs (User Defined Problems) is:

\[ \mathbf x = [m_f, u_{x0}, u_{y0}, u_{z0}, u_{x1}, u_{y1}, u_{z1}, ..., T_{tof}] \]

Note

This notebook makes use of the commercial solver SNOPT 7 and to run needs a valid snopt_7_c library installed in the system. In case SNOPT7 is not available, you can still run the notebook using, for example uda = pg.algorithm.nlopt("slsqp") with minor modifications.

Basic imports:

import pykep as pk
import numpy as np
import time
import pygmo as pg
import pygmo_plugins_nonfree as ppnf
import time

from matplotlib import pyplot as plt

# Problem data
mu = pk.MU_SUN
max_thrust = 0.12
isp = 3000

# Initial state
ms = 1500.0
rs = np.array([1.2, 0.0, -0.01]) * pk.AU
vs = np.array([0.01, 1, -0.01]) * pk.EARTH_VELOCITY

# Final state
mf = 1300.0
rf = np.array([1, 0.0, -0.0]) * pk.AU
vf = np.array([0.01, 1.1, -0.0]) * pk.EARTH_VELOCITY

# Throttles and tof
nseg = 4
throttles = np.random.uniform(-1, 1, size=(nseg * 3))
tof = 2 * np.pi * np.sqrt(pk.AU**3 / pk.MU_SUN) / 4

udp_nog = pk.trajopt.direct_point2point(
    rvs=[rs, vs],
    rvf=[rf, vf],
    mu=pk.MU_SUN,
    max_thrust=0.22,
    isp=3000,
    tof_bounds=[200, 500],
    mf_bounds=[200.0, 1000.0],
    nseg=nseg,
    cut=0.6,
    with_gradient=False,
)

udp_g = pk.trajopt.direct_point2point(
    rvs=[rs, vs],
    rvf=[rf, vf],
    mu=pk.MU_SUN,
    max_thrust=0.22,
    isp=3000,
    tof_bounds=[200, 500],
    mf_bounds=[200.0, 1000.0],
    nseg=nseg,
    cut=0.6,
    with_gradient=True,
)

snopt72 = "/Users/dario.izzo/opt/libsnopt7_c.dylib"
uda = ppnf.snopt7(library=snopt72, minor_version=2, screen_output=False)
uda.set_integer_option("Major iterations limit", 2000)
uda.set_integer_option("Iterations limit", 20000)
uda.set_numeric_option("Major optimality tolerance", 1e-3)
uda.set_numeric_option("Major feasibility tolerance", 1e-12)

# uda = pg.nlopt("slsqp")
algo = pg.algorithm(uda)

prob_nog = pg.problem(udp_nog)
prob_nog.c_tol = 1e-6
prob_g = pg.problem(udp_g)
prob_g.c_tol = 1e-6
pop_g = pg.population(prob_g, 1)
pop_g = algo.evolve(pop_g)
print(prob_g.feasibility_f(pop_g.champion_f))

True

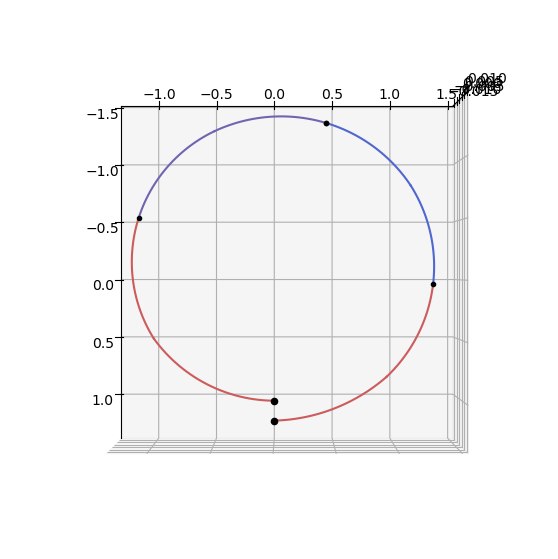

ax = udp_nog.plot(pop_g.get_x()[0], show_gridpoints=True)
ax.view_init(90, 0)

from tqdm import tqdm

cpu_nog = []
cpu_g = []

fail_g = 0
fail_nog = 0

for i in tqdm(range(2000)):
    pop_nog = pg.population(prob_nog, 1)

    pop_g = pg.population(prob_g)
    pop_g.push_back(pop_nog.get_x()[0])

    start = time.time()
    pop_g = algo.evolve(pop_g)
    end = time.time()
    cpu_g.append(end - start)
    if not prob_g.feasibility_f(pop_g.champion_f):
        fail_g += 1

    start = time.time()
    pop_nog = algo.evolve(pop_nog)
    end = time.time()
    cpu_nog.append(end - start)
    if not prob_nog.feasibility_f(pop_nog.champion_f):
        fail_nog += 1

print(f"Gradient: {np.median(cpu_g):.4e}s")
print(f"No Gradient: {np.median(cpu_nog):.4e}s")

print(f"\nGradient (n.fails): {fail_g}")
print(f"No Gradient (n.fails): {fail_nog}")

100%|██████████| 2000/2000 [04:06<00:00,  8.13it/s]

Gradient: 5.6576e-02s
No Gradient: 5.9454e-02s

Gradient (n.fails): 208
No Gradient (n.fails): 206

cpu_g = np.array(cpu_g)
cpu_nog = np.array(cpu_nog)
plt.hist(cpu_g[cpu_g < 0.2], bins=100, label="gradient", density=True, alpha=0.5)
plt.hist(cpu_nog[cpu_nog < 0.2], bins=100, label="no_gradient", density=True, alpha=0.5)
# plt.xlim([0,0.15])
plt.legend()
plt.title("point2point, 4 seg case")
plt.xlabel("CPU time")
plt.ylabel("N. occurrences")

Text(0, 0.5, 'N. occurrences')

udp_g.leg.tof=1232.
udp_g.leg

Number of segments: 2
Number of fwd segments: 1
Number of bck segments: 1
Maximum thrust: 0.22
Central body gravitational parameter: 1.32712440018e+20
Specific impulse: 3000

Time of flight: 1232
Initial mass: 1000
Final mass: 1
State at departure: [[179517444840, 0, -1495978707], [297.8469183169681, 29784.691831696804, -297.8469183169681]]
State at arrival: [[149597870700, 0, -0], [297.8469183169681, 32763.161014866488, -0]]
Throttles values: [0, 0, 0, 0, 0, 0]

Mismatch constraints: [29919941431.26764, 38529477.27626525, -1496162174.1910896, -6.189427009557562, -2978.469066381742, -297.82577960576987, 999]
Throttle constraints: [-1, -1]
